Core concepts

Learn the shared vocabulary and constraints that apply to the ElemBio CLI, API, and skills. Read this before diving into any interface-specific docs.

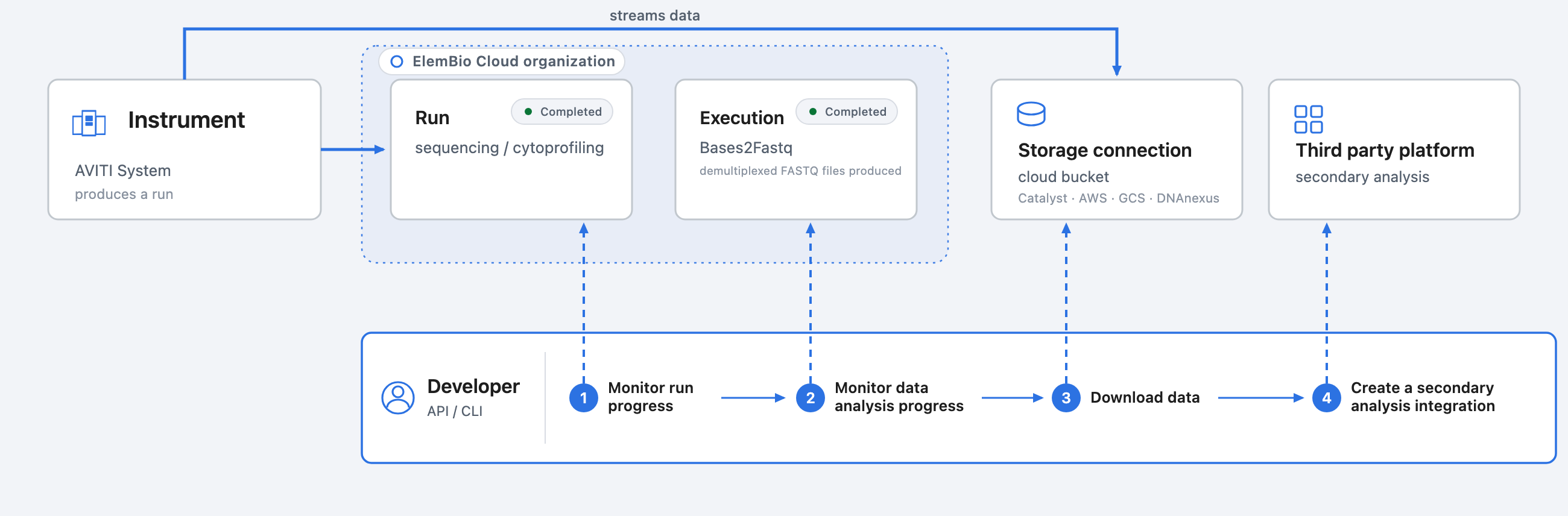

The AVITI™ produces sequencing or multiomic run data that lands in a storage connection. A flow schedules an execution of a workflow such as Bases2Fastq or Cells2Stats, which writes output files consumed by downstream secondary analysis to a storage connection.

The ElemBio™ CLI and API are resources to view and interact with your ElemBio Cloud data programmatically. They list and retrieve metadata, download run outputs, and mount data. Runs, flows, and analysis are created and configured only in the ElemBio Cloud.

The instrument pushes run metadata into ElemBio Cloud and streams its data into cloud storage. The API and CLI let you monitor and react to your runs. You can:

• monitor a run's progress, status, and metrics
• check for recently completed runs
• check for completed data analysis
• download or mount the raw run or execution data
• create integrations with third-party secondary/tertiary workflow providers

Key objects

The CLI and API share a common object model. Every endpoint and command operates on one of four core objects.

Runs

A run (either sequencing or multiomics) is the main data object that other objects revolve around. A run contains:

• the setup metadata (for example, sequencing kit, number of cycles)
• basic run metrics (for example, total yield, total reads, %Q30)
• pointers to the other metadata like the originating instrument
• pointers to data storage details for the run such as the storageConnectionId and uri where the raw run data lives

Executions

An execution is a launched analysis workflow, such as Bases2Fastq or Cells2Stats, tied to a run. It records the status, the exact launch parameters, logs, and the output files it produced. Executions belong to a run.

Storage connections

A storage connection encodes the cloud bucket that your instrument streamed run data into, either a bucket hosted by ElemBio Catalyst™ or your own cloud. Data uploads continuously throughout a run. The connection also mints short-lived, scoped credentials that the CLI uses to download or mount data directly from the underlying object store, so bytes never proxy through the API. A run's output.storageConnectionId links it back to where its data lives.

Instruments

An instrument is a registered Element Biosciences system, addressed by its serial number. It produces runs and streams their data to storage. Every run names the instrument that produced it in its instrument block.

Accessing key objects

Resource	Description	API path	CLI command
Runs	Instrument runs and their output files	/v1/runs	elembio runs
Executions	Workflow executions (for example, Bases2Fastq) and their outputs	/v1/executions	elembio executions
Instruments	Registered instruments	/v1/instruments	elembio instruments
Storage connections	Connected cloud storage	/v1/storage-connections	elembio storage

Identifiers

All unique objects carry a type-prefixed identifier (for example, seq_507f1f77bcf86cd799439011). Instruments are addressed by serial number. Most resources can also be referenced by their human-readable name in the CLI.

Requests and responses

• Authenticate every request with an API key. See Authentication.
• All responses are JSON.
• List endpoints are paginated and filterable. See Pagination and Filtering below.
• Errors use a consistent envelope.

Pagination

API

List responses are cursor-based. Control paging with these query parameters:

Parameter	Type	Default	Description
pageSize	integer	100	Maximum results per page (max 1000)
pageToken	string	—	Token for the page to retrieve
includeTotalCount	boolean	false	Include totalCount in the response

When more results exist, the response includes a nextPageToken. Pass it back as pageToken to retrieve the next page:

curl -sSf "https://cloud-api.usw2.elembio.io/v1/runs?pageSize=50&pageToken=<nextPageToken>" \
  -H "x-api-key: $ELEMBIO_API_KEY"

CLI

By default, the CLI paginates automatically and returns up to 100 matching objects. Raise the limit with --max-items, or use --max-items 0 to return all matches.

# Return up to 200 objects, requesting 50 objects per API call
elembio runs list --page-size 50 --max-items 200

# Disable automatic pagination and return all results
elembio runs list --max-items 0

Filtering

Many CLI commands and API endpoints support filtering to return only the objects you are interested in. Both interfaces use the same filter syntax, so once you learn it, you can use it everywhere. Specify one or more keyword:value expressions to match object attributes.

Pattern	Example	Meaning
Single filter	status:completed	Return completed objects.
Multiple filters	status:completed type:sequencing	Return objects matching both filters.
Multiple values	status:completed,failed	Return objects matching either value.
Comparisons	time_created>=7d	Compare numeric or date fields using >=, <=, >, <, or !=.
Dates	time_created>=2026-01-01	Use ISO 8601 dates or relative times such as 7d or 1mo.

Common filter keywords include name, id, status, type, and time_created. For example, to return only completed sequencing runs:

API

Pass the expression as a filter query parameter, with spaces URL-encoded as %20:

  curl --get "https://cloud-api.usw2.elembio.io/v1/runs" \
     --data-urlencode "filter=type:sequencing status:completed" \
     -H "x-api-key: $ELEMBIO_API_KEY"

CLI

Pass the same expressions through a repeatable --filter flag:

elembio runs list \
  --filter status:completed \
  --filter type:sequencing

See also

• API quickstart
• CLI quickstart
• Authentication
